We offer precision CNC machining services for industrial mechanics used in a wide range of engineering applications.



Leading Companies Trust Viyoma

Our Manufacturing Capabilities

With a track record of producing millions of components, our manufacturing capabilities encompass a wide range, supporting prototyping, low-volume, and large-scale production. Our core competency lies in being the preferred manufacturer for geometrically complex metal parts for the automotive, industrial machinery, oil and gas, energy, and general mechanics markets.

  • Spindle machined with a perpendicularity of 5 microns for a demanded tolerance of 38 microns. Size 1100 mm long. Weight 450 kgs.

  • Accelerating production for locomotive parts. Size Ø 770 x 190 mm. Concentricity within 0.03 mm; weight 160 kgs.

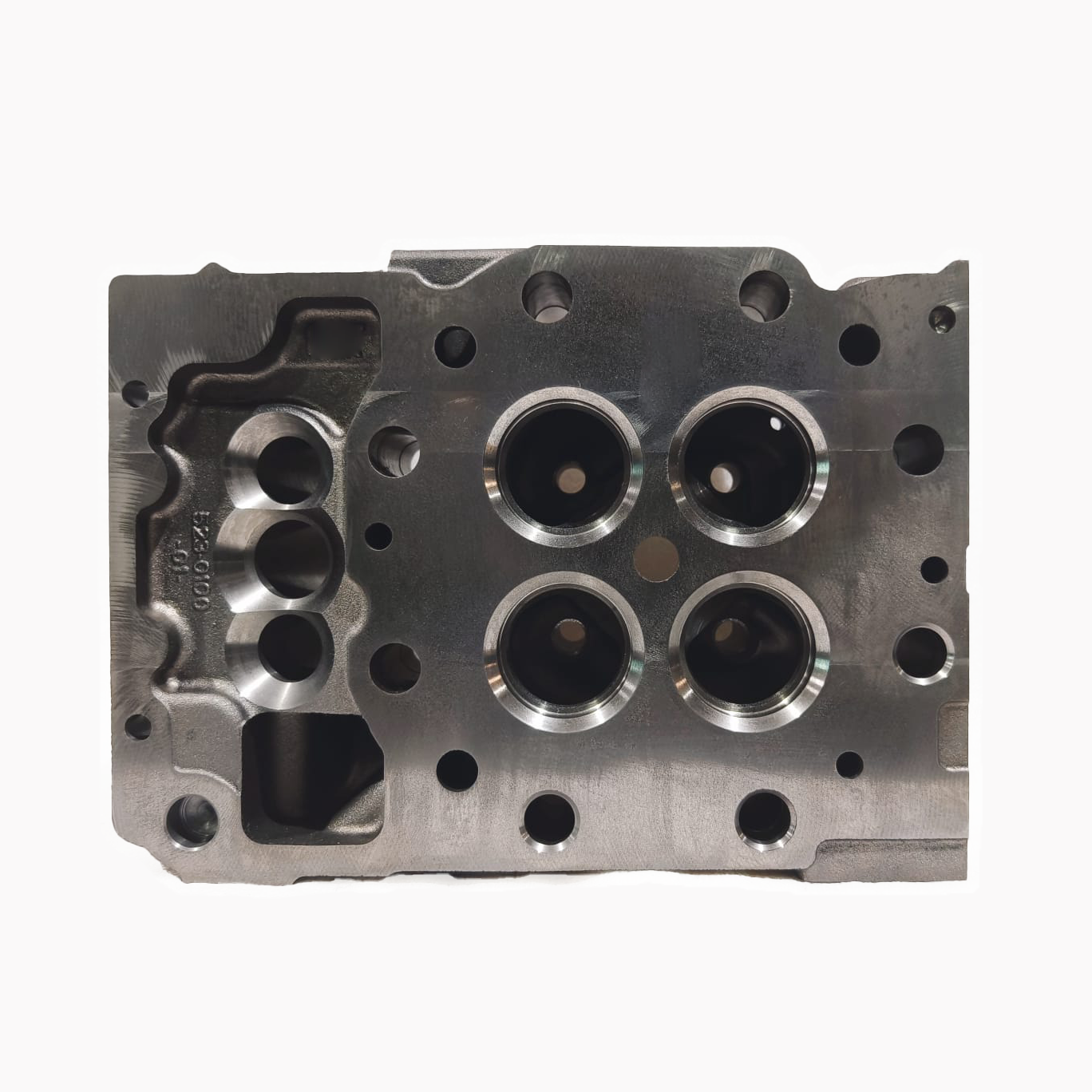

  • Cylinder Head machined for one of the largest industrial engine makers in the world. Roundness below 0.01 mm, weight 45 kgs.

  • Carrier Planet size Ø 800 x 250 mm. Position and parallelism within 0.03 mm. Weighs 219 kgs.

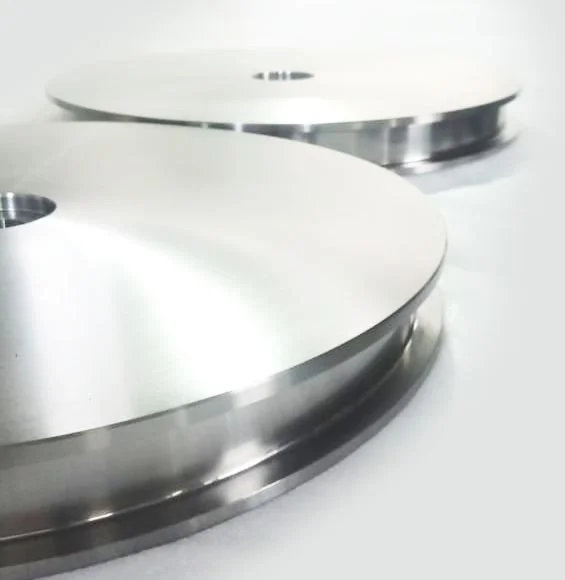

  • Piston machined on Okuma VTL by eliminating grinding of seal groove (less than 0.8 Ra finish). Groove finish from turning operation.

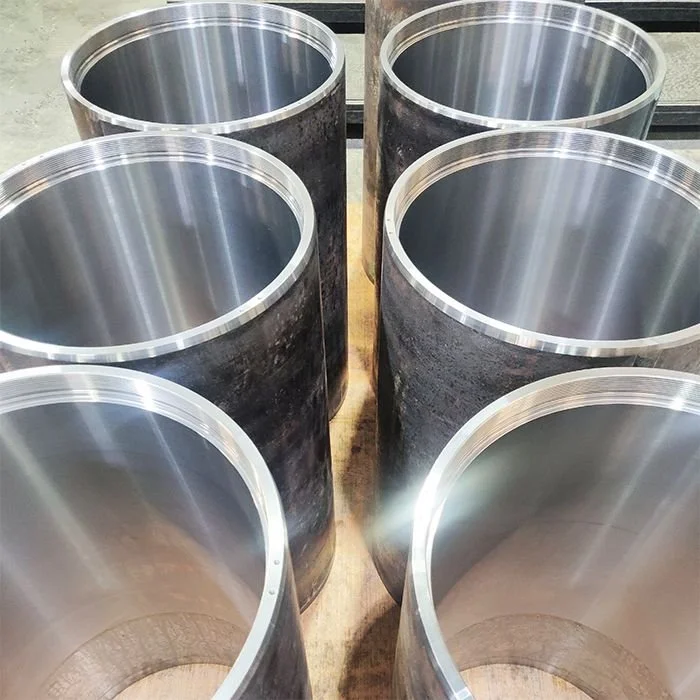

  • Thin-walled cylinder skirt maintained on Ø 575 x 950 mm with a turned surface finish of 0.8 Ra. Circularity is controlled within 0.05 mm. Machined on Okuma VTR 160A.

  • 5VI thread; Surface finish 0.8 Ra. Size Ø300 x 400 mm and weighs 80 kgs.

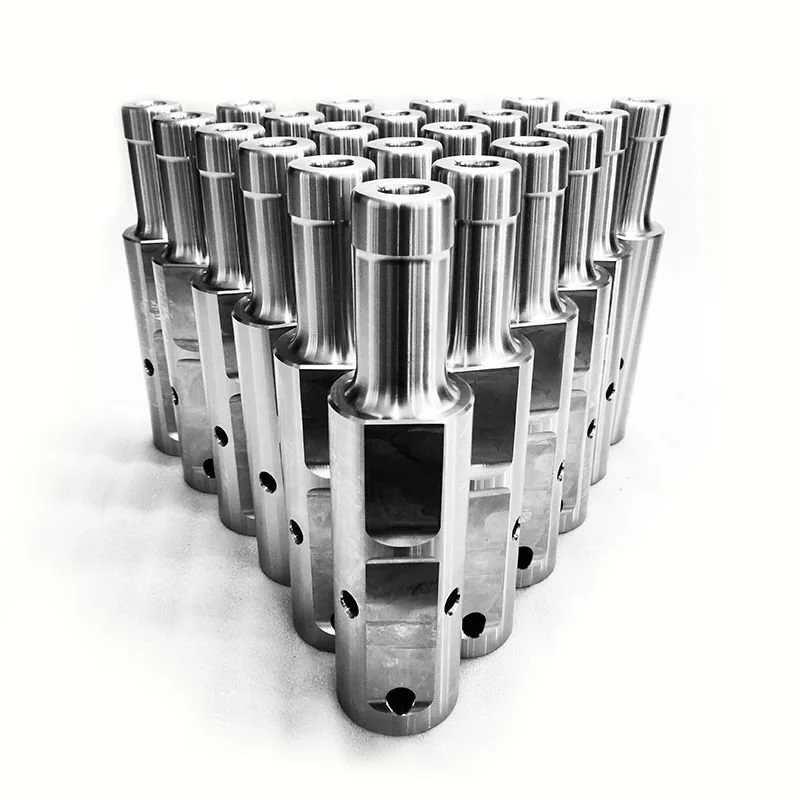

  • Piston machined on multi-tasking (Mazak Integrex IV) for down-the-hole hammer RH510. Size Ø 125 x 350 mm; weighs 20 kgs per part.

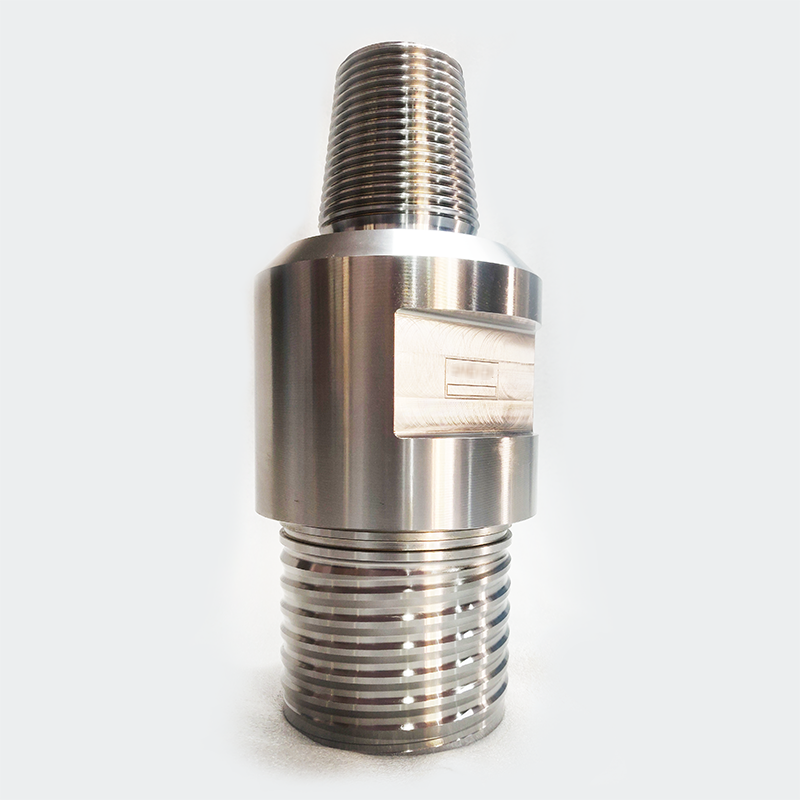

  • Top Sub 8 Inch with Ø 150 x 422 mm and 57 kgs. API and buttress thread.

  • Piston size Ø 100, length 550 mm. Concentricity within 0.03 mm.

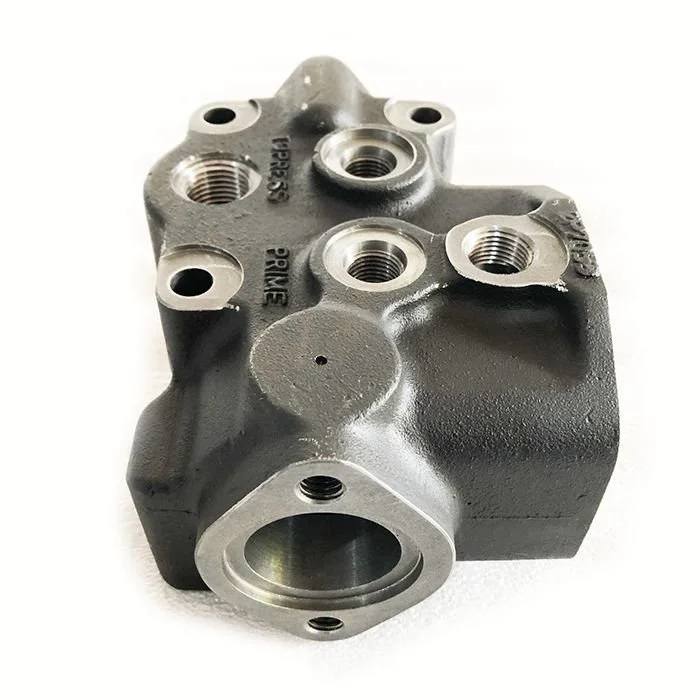

  • Valve body 0.8 Ra, bore roundness and tolerance within 0.01 mm.

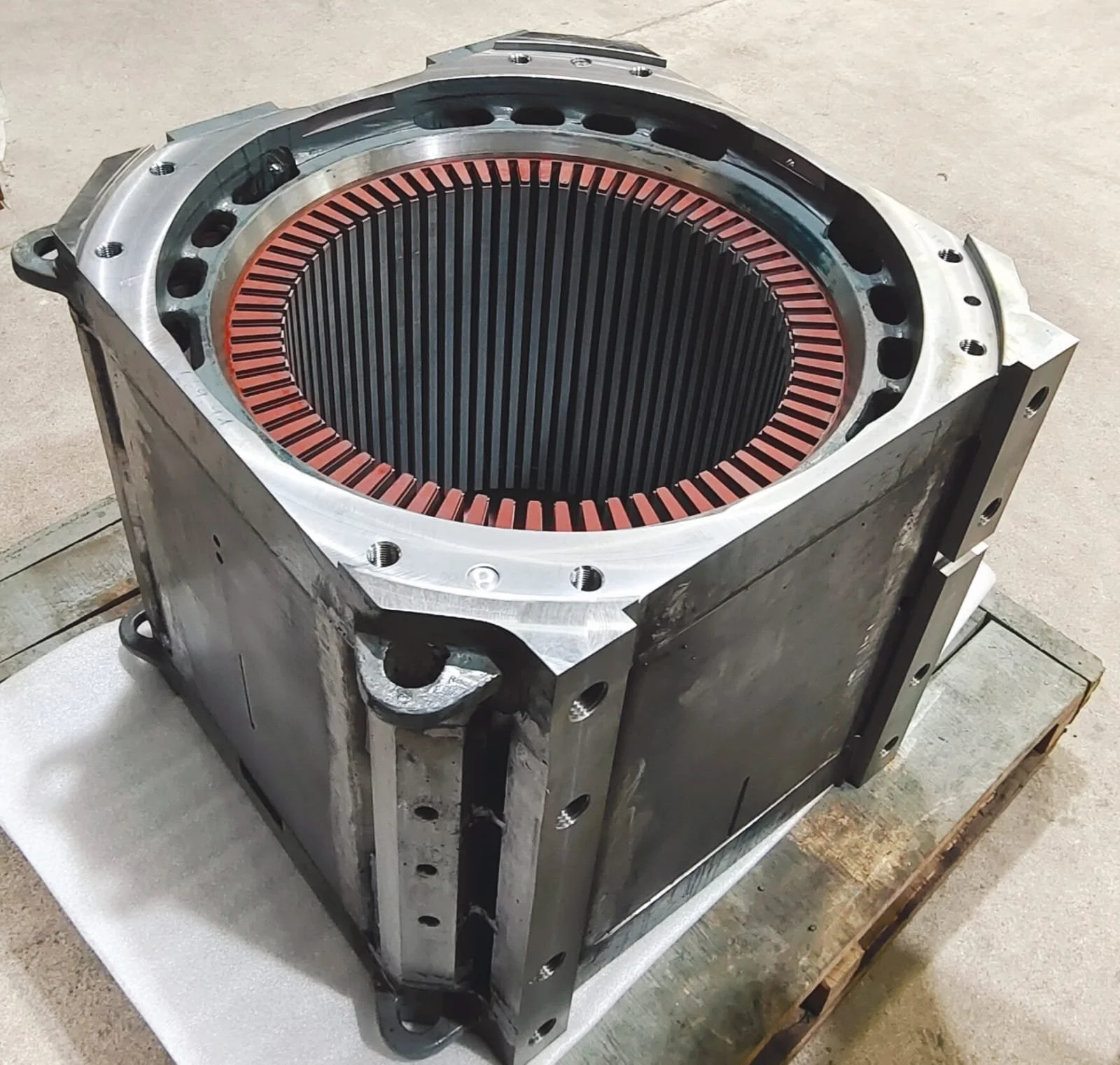

  • Electric locomotive traction motor-stator. Concentricity within 0.04 mm; weight 1200 kgs.

Milling

We mill 3- to 5-axis components up to a size of Ø1170 X 1200

Turning

We produce turned/milled parts up to a size of Ø1600 X 1250

Materials

We source all common alloy steel, aluminum, stainless steel, titanium, inconel, and exotic metals

Our Machinery

  • Max. work holding size: Ø760 mm

    Max. machining length: 1014 mm

  • Max. workpiece size: Ø1000 x 1300 mm

    Max. pallet load: 1200 kgs

  • Max. workpiece size: Ø800 x 1000 mm

    Max. pallet load: 700 kgs

  • Max. workpiece size: Ø1000 x 1200 mm

    Max. pallet load: 1000 kgs

  • Max. workpiece size: Ø670 x 750mm

    Max. pallet load: 500 kgs

  • Max. workpiece size: Ø800 x 800 mm

    Max. pallet load: 500 kgs

  • Stroke movement (X, Y, Z): 1020 x 510 x 510 (150-660) mm

    Max. pallet load: 1200 kgs

  • Stroke movement (X, Y, Z): 1050 x 560 x 460 (150-610) mm

    Max. pallet load: 900 kgs

  • Max machinable dimension: Ø1000 mm

    Max. workpiece weight: 800 kgs

  • Max. machinable dimension: Ø1000 mm

    Max. workpiece weight: 800 kgs

  • Max machinable dimension: Ø900 mm

    Max. machining length: 750 mm

    Max. workpiece weight: 800 kgs

  • Max. machining dimension (swing over cross slide): Ø750 mm

    Max. machining length: 510 mm

  • Max. workpiece size: Ø716 mm

  • Max. workpiece size: Ø1000 x 1000 mm

    Max. pallet load: 1200 kgs

  • Stroke movement (X, Y, Z): 1530 x 660 x 610 (840-230) mm

    Max. pallet load: 1500 kgs

  • Stroke movement (X, Y, Z): 1020 x 510 x 460 mm

    Max. pallet load: 1200 kgs

  • Max. machinable dimension: Ø670 mm

    Max. workpiece weight: 800 kgs

  • Max. machinable dimension: Ø670 mm

    Max. workpiece weight: 600 kgs

  • Max. workpiece size: Ø1170 x 1200 mm

    Max. pallet load: 1600 kgs

  • Max. machinable dimension: 1600 mm

    Max. workpiece weight: 10,000 kgs

  • Max. machinable dimension: Ø500 mm

    Max. workpiece weight: 300 kgs

  • Max. machinable dimension: Ø1000 x 1000 mm

    Max. pallet load: 1200 kgs

  • Max. machinable dimension: Ø800 mm

  • Max. machinable dimension: Ø750 mm

  • Max. machinable dimension: Ø600 mm

Featured Case Studies

We are committed to customer satisfaction, reliability, and innovation, positioning us as a trusted partner in the CNC manufacturing industry for over 30 years.

Partner with Us

At Viyoma Manufacturing, we are redefining precision and innovation through our state-of-the-art CNC manufacturing capabilities. We extend a warm invitation to global Original Equipment Manufacturers seeking to forge strategic alliances and invest in groundbreaking partnerships.
